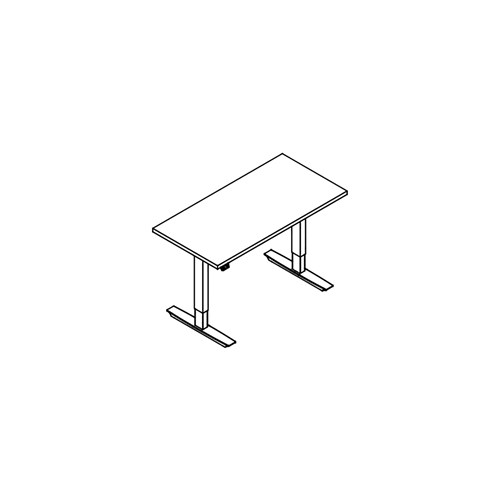

ML Series - Rectangular, 2 Stage, 2 Leg, 54" W
Shop local. Contact us for best pricing
(425) 257-3242
Model # 5223054H
- Drive System: 110V, 60Hz AC input 120V DC motor. Draws a maximum of 3 amps
- Travel Range: 2 stage - 19.6 " of vertical adjustment from 28" to 47.6" ( with feet and worksurface), 3 Stage - 25.5" of vertical adjustment from 24.5" - 50" ( with feet and worksurface)
- Adjustment Speed: 2 stage .75" per second; 3 stage 1.5" per second
- Control Switch: Simple UP/Down Control Switch sold as standard. LED 4 position preset control available as an accessory option
- Worksurfaces: 1 1/8" high pressure laminate with 3mm PVC (square corners) as standard. T-Mold (radiused corners) also available
- Keyboard Surface: Optional mechanism extends keyboard range to 8" below and/or 7" above the monitor surface. Tilt range is +15º to - 15º tilt
- Bases: Consist of heavy duty all steel legs with expandable/adjustable steel frames. Frames range from 40"-68" W which accommodate 48" - 72" worksurfaces
- Bases: Offered in silver metallic powder coat paint only
- Load Capacity: 220 lbs. for 2-column models and 350 lbs for 3-column models
- Meets ADA and BIFMA performance standards
- Meets Intertek VOC+ Certification
Contact Us About This Product
